Helix Standard

In stock
SKU
B3HE-STD-TIDESN
MSRP MSRP NTD$111,000
*Ultra Compact
*Titanium Frame
*Easy to Use
*Big Wheels
*Lightweight
*High Performance
Add to Wish List
Find your size
  Best size for you
Based on your measurements, we recommend this frame size.
Based on your inner leg length, we recommend a saddle height of CM.
No frame size is right for you
Select Frame Size

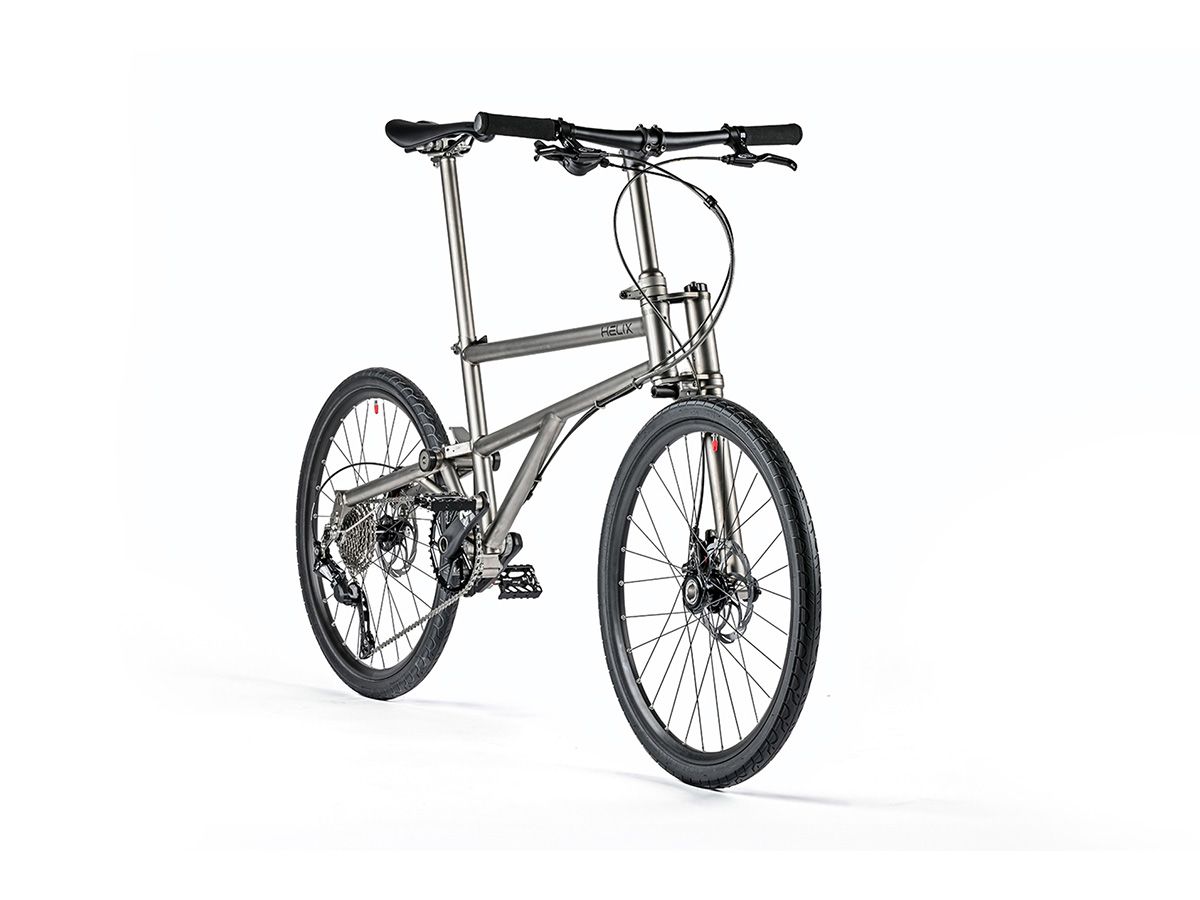

Helix is the most compact folding bike in the world. With 24" wheels it folds even smaller than most bikes with 16" and 20" wheels. Helix has a full titanium frame and locking mechanism making it extremely durable and lightweight.

The Performance spec strikes the perfect balance between innovation and efficiency - elevating the Helix experience with premium upgrades where they matter most.

Equipped with our SRAM X1 DUB crankset, Shimano SLX 11 speed drivetrain for climbing performance, and Formula disc brakes for confident stopping in all conditions.

One-PieceFrame

Helix's one-piece frame has no hinges so it will never creak or flex when pedaling.


Standard Components

Helix is compatible with industry standard components including disc brakes and wide range cassettes.


Revolutionary Locking Mechanism

Helix has a patented locking mechanism that is fully rigid, never wears or needs adjustment and has multiple safety features.

Removable Dropouts

Helix uses removable dropouts for complete flexibility in drivetrain options ranging from single speed, derailleur, internal gear hub and electric.


Smooth Cable Path

Helix has a smooth and flowing cable path for precise shifting and braking.


Accessories

Helix has mounting points for a full range of accessories making Helix a complete solution for traveling, commuting, touring and more.

  • Frame

    Titanium Frame
    Helix has a full titanium frame and locking mechanism making it extremely durable and lightweight.

  • Groupset

    SHIMANO SLX Rear Derailleur 11 Speed
    The newly released mid-range SLX groupset from SHIMANO incorporates many performance features inherited from DEORE XT. In addition, it offers greater affordability, durability, and compatibility.

  • Hydraulic disc brake

    Formula Cura XC
    The Cura is a clean, simple, and great riding brake designed to fit all riders and their bikes. The lever, designed for the human factor, is our most ergonomic and intuitive yet. With how capable mountain bikes have become at conquering any trail our caliper is proficient in taming the bike to overcome the trail.

  • Crankset

    SRAM X1 1000 DUB Crankset
    Quality and durability combine in the SRAM X1 crankset to deliver consistent performance every time out. Featuring SRAM's X-SYNC™ tooth profile, the X1 crankset is engineered for complete chain control.

  • Easy to Use

    Easy to Use

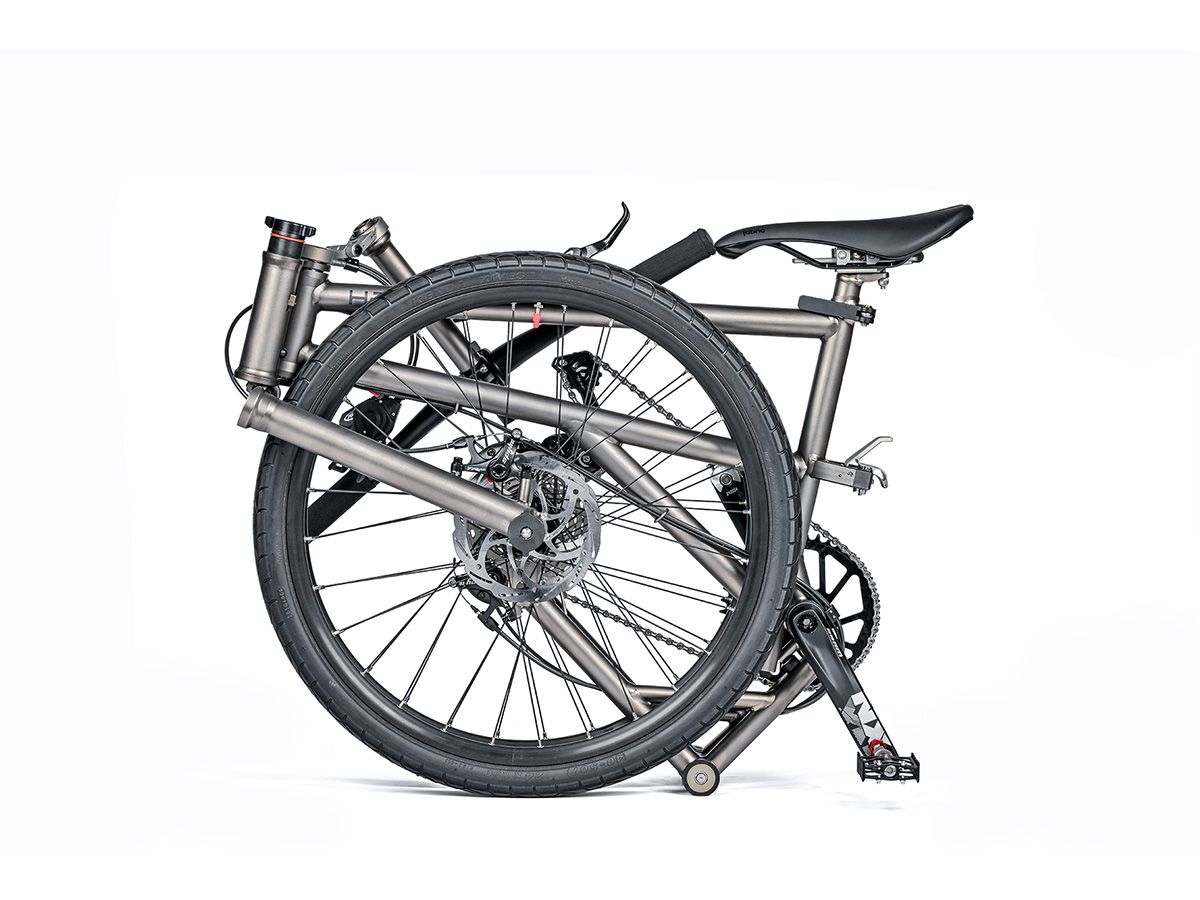

    Helix is intuitive to fold, rolls and stands when folded and has multiple built-in safety mechanisms.

  • Big Wheels

    Big Wheels
    Helix has 24" wheels offering a smoother ride, better visibility and confidence anywhere you go.

  • 極輕量化鈦合金

    Helix 起始重量僅約8.6公斤 ，是同類別中最輕的摺疊自行車，因此易於舉起和攜帶

  • Sliding Seatpost

    Sliding Seatpost
    Helix's patented sliding seatpost makes Helix fold even smaller while extending the range of riding positions.
Note: The seatpost/saddle can be removed to reduce the folded size.
Tire Diameter Length Height Width
23.0" (584.2mm) 28.0" (711.2mm) 25.0" (635mm) 10.5" (266.7mm)
Using 1.5"
Kenda Kwest 		27.5" (688.5mm) 23.5" (596.9mm)
Without Saddle Without Saddle
Limitations:
Maximum Rider Weight: 230 lb / 104 kg
Maximum Load Capacity: 245 lb / 111 kg
Maximum Tire Width: 1.5" / 38.1mm
Maximum Rider Height: 6' 4" / 1.93m
A: Maximum / Minimum Saddle Height from Bottom Bracket
Seatpost Type Max Min
Standard 940.4mm (37") 603.8mm (23.8")
Extended 980.4mm (38.6") 603.8mm (23.8")
B: Maximum / Minimum Distance from Handlebar to Saddle Center: 713mm (28.07") / 596.5mm (23.48")
C: Headset to Bottom Bracket Length: 459.3mm (18.08")
D: Head Tube Angle: 72°
E: Actual Seat Tube Angle: 74° (Virtual Range: 72–76°). The angle varies depending on saddle height adjustment.
F: Standover Height: 655.3mm (25.8")
G: Head Tube Length: 110mm (4.33")
H: Wheelbase: 1056.6mm (41.6")
I: Chainstay Length: 377mm (14.84")
J: Bottom Bracket Height: 303.6mm (11.95")
K: Trail: 67.3mm (2.65")
L: Distance from Tire to Pedal Axle: 217.9mm (8.58")
M: Maximum / Minimum Handlebar Height from Ground: 991.2mm (39.02") / 960.6mm (37.82")
N: Bottom Bracket Drop: 6.7mm (0.26")
O: Headset to Bottom Bracket Height: 687.6mm (27.07")
1: Saddle Angle Adjustment: +/- 4 degrees
2: Saddle Adjustment Range: 100.0mm (3.94")
3: Seatpost Diameter: 28.6mm (1.125")
Product Specifications
FRAMESET
Frame
3Al-2.5V CWSR titanium
Size
One Size
Color
Titanium
Fork
3Al-2.5V CWSR titanium
BRAKES

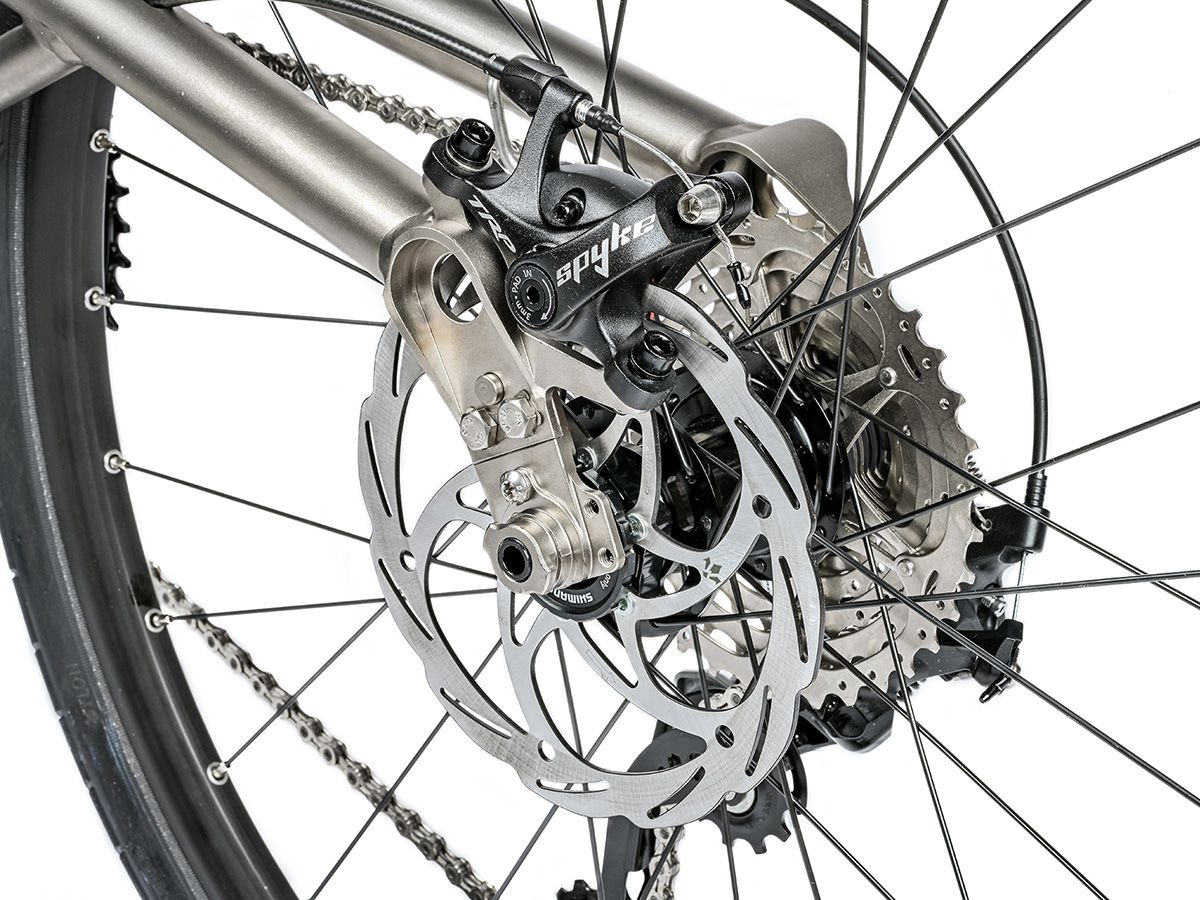

Brake Caliper
TRP Spyke

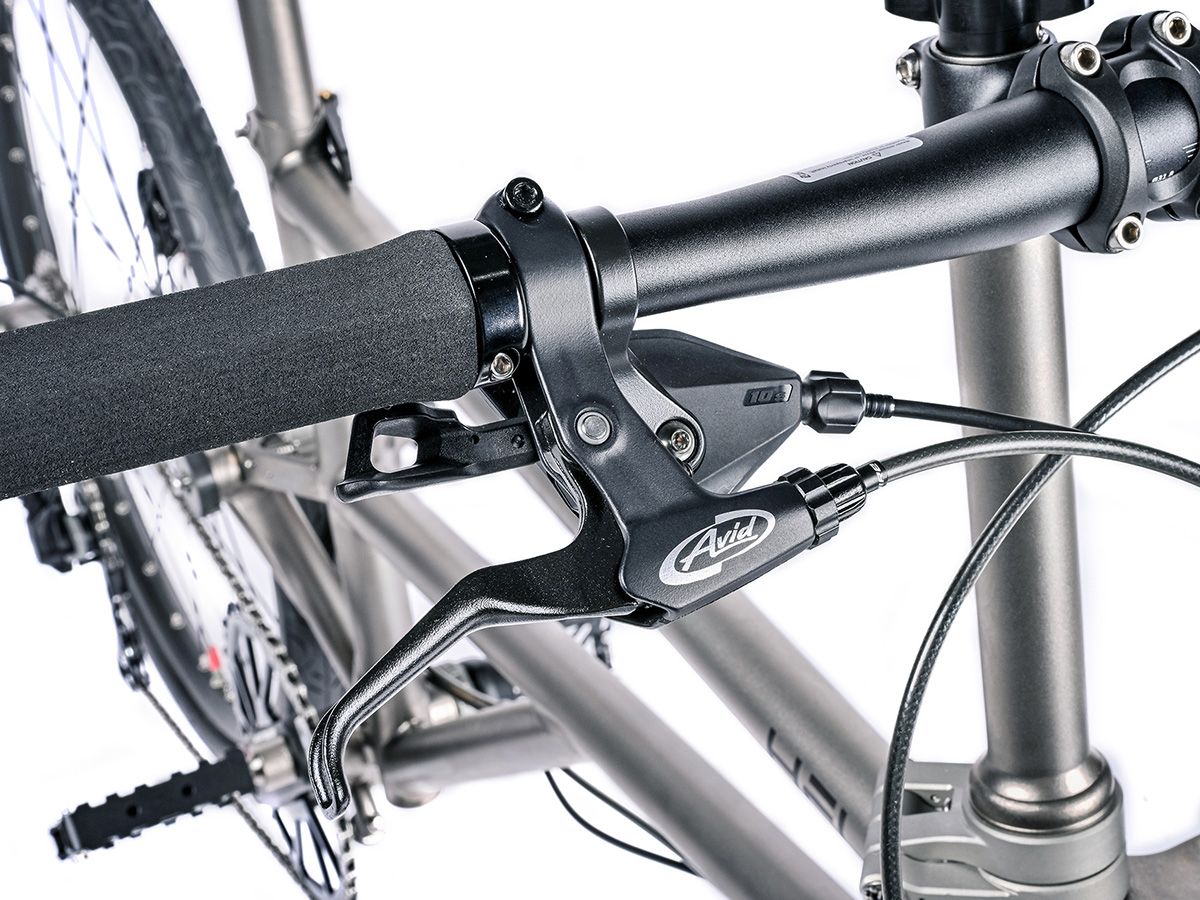

Brake Lever
Avid BB5
Front Brake
Formula Monolithic 160mm IS 6-Bolt
Rear Brake
Formula Monolithic 160mm Centerlock
COCKPIT
Head Parts
VP, stainless, angular contact bearing
stem
ART, 50mm, 17°, 3D forged
Handlebar
Premetec 7-Series Al, 31.8mm, 580mm width
Pedals
Wellgo M142 QRD-I Quick Release Pedals
Saddle
fabric Scoop Elite Radius CrMo rails
Seat post
Helix titanium, 28.6mm x 440mm
Seat clamp
Helix
DRIVETRAIN
Shift-Brake Lever
Shimano DEORE SL-M4100
freewheel
Shimano DEORE CS-HG50-10 10 Speed (11-36t)
Crankset
SRAM NX Direct Mount, GXP, 165mm
Chainwheel
CNC Aluminum 42t, narrow-wide
Rear Derailleur
Shimano DEORE RD M6000, Shadow+ 10 Speed
Chain
FSA K-Force Light 10 Speed, hollow link, nickel plated
WHEELS & TIRES
Rims
Alex DP17
Rear Hub
Powerway PFH-CT11, 135mm x 12mm thru-axle, Shimano HG driver, 28h
Tyres
Kenda Kwest folding bead, 507-40 (24 x 1.5")
Inner Tubes
Kenda inner tube
WEIGHT
Max. weight
10.61 kg
OTHERS
SKU
B3HE-STD-TIDESN
Bikes Type
Folding Bike
Brands
Helix
Place Of Manufacture
Canada
Materials
Titanium
